Oil in Wastewater Analyzer - Automated OCMA-500

Oil in Wastewater Analyzer - Automated OCMA-500

HORIBA | Spectroscopy

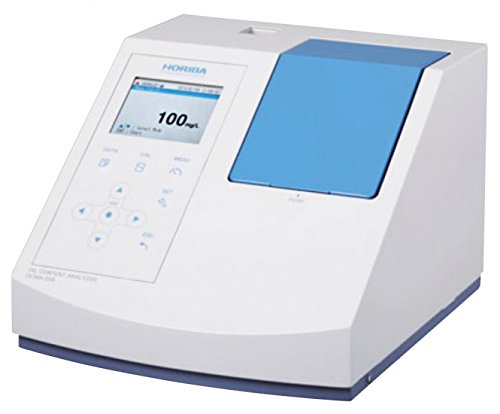

The OCMA-500 is a fully automated Oil content analyzer that quickly and accurately measures the concentration of oils from wastewater samples in less than 3 minutes. It requires a user to simply inject 8 ml of a water sample followed by 8 ml of S-316 solvent into a measuring cell.   The analyst need only press a measure button and the instrument automatically mixes the 2 layers for a brief period after which the solvent/oil layers stratifies and the wastewater  layer is diverted to a collection vessel. The solvent/oil fraction is then analyzed by NDIR and results are displayed as mg/L, mg/kg, mg/m on a 3.5’ backlit LCD.

Features:

  • NDIR Analysis (non dispersive Infrared Spectroscopy)
  • Measurement range: 0 mg/l to 200 mg/l
  • Resolution:
    0 to 99.9 mg/L - 0.1 mg/L
    100 to 200 mg/L  1.0 mg/L
  • Repeatibility
    0 to 9.9 mg/L  ± 0.2 mg/L
    10.0 to 99.9 mg/L ± 2 mg/L  ± 1 digit
    100 to 200 mg/L ± 4 mg/L  ± 1 digit
  • Display: 3.5 inches, 320 x 240 dots, backlight color graphic LCD
  • Calibration method: Zero, Span Calibration
  • Extraction solvent: S-316 Solvent (non hazardous)
  • Amount of extraction solvent required: 8 mL
  • Operating conditions: 0- 40 ° C (non condensing)
  • Power supply: AC 100V to 240 V +/- 10% 50/60 Hz
  • Dimensions: 342 mm H x 200 mm W x 313 mm D

Data Sheet
