Oil in Wastewater Semi-Automated OCMA-550

Oil in Wastewater Semi-Automated OCMA-550

HORIBA | Spectroscopy

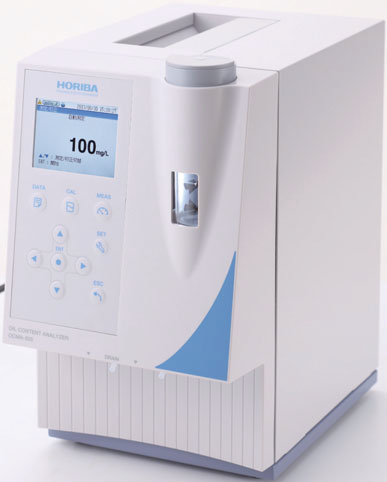

The OCMA-550  is a semi-automated Oil content analyzer that quickly and accurately measures oil deposits on electrical components, metal parts, soil and foodstuffs. The instrument requires a simple extraction of the solid by immersion into a non hazardous S- 313 Solvent and mixed accordingly.   After a brief period, an aliquot of the extraction solvent is then injected into a separate cell and subsequently placed into a compartment of the instrument.  With a touch of a button, the instrument automatically measures the sample extract by NDIR and provides results displayed as mg/L, mg/kg, mg/m on a 3.5’ backlit LCD.

Features:

  • NDIR Analysis (non dispersive Infrared Spectroscopy)
  • Measurement range:  0 mg/l to 200 mg/l
  • Resolution:
    0 to 99.9 mg/L - 0.1 mg/L
    100 to 200 mg/L  1.0 mg/L
  • Repeatibility
    0 to 9.9 mg/L  ± 0.4 mg/L
    10.0 to 99.9 mg/L ± 2 mg/L  ± 1 digit
    100 to 200 mg/L ± 4 mg/L  ± 1 digit
  • Display: 3.5 inches, 320 x 240 dots, backlight color graphic LCD
  • Calibration method: Zero, Span Calibration
  • Extraction solvent: S-316 Solvent (non hazardous)- NO Substitutes
  • Amount of extraction solvent required: 8 mL
  • Operating conditions: 0- 40 ° C (non condensing)
  • Power supply: AC 100V to 240 V +/- 10% 50/60 Hz
  • Dimensions: 195 mm H x 253 mm W x 293 mm D

Data Sheet

Contact us for pricing
