MediPrep 820 & 1622 Automated Dissolution Media Prep

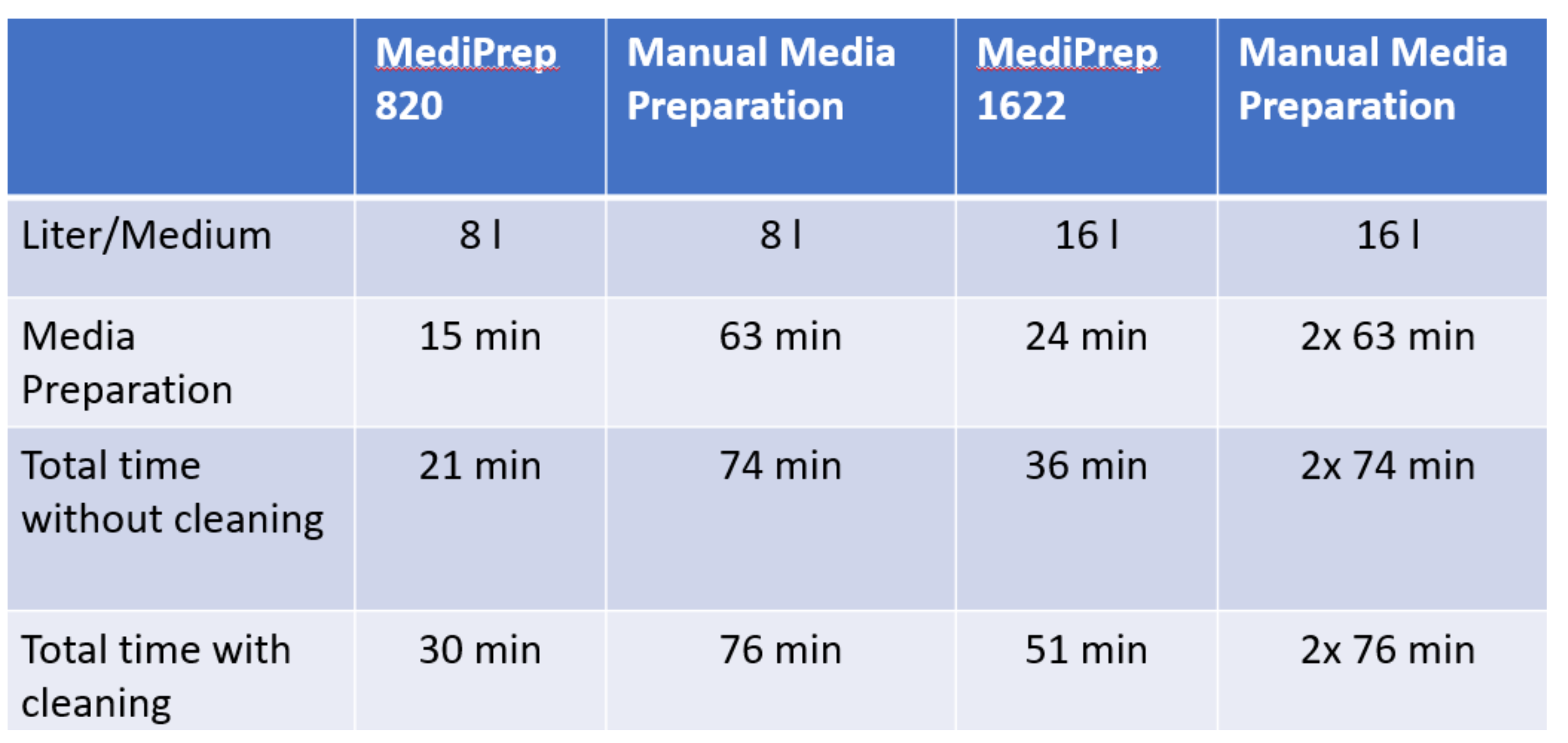

The MediPrep 820 series offers quick and easy preparation of up to 8 liters dissolution media in less than 15 minutes. The MediPrep 1622 only needs 25 minutes to prepare dissolution media - 3 times faster than manually done according USP! In a single pass, the media for dissolution tests can be precisely mixed, heated, degassed and gravimetrically filled into vessels. Foaming media like SDS (Sodium Dodecyl Sulfate) can also be used.
Filling can be done at the integrated dosing port or with the optional remote filling hand directly into the vessels.
The MediPrep 1622 additionally provides two inlets for premixed media and one outlet for wastewater. To prevent cross contamination, an automated cleaning procedure is integrated.
| Versions | MediPrep 820 for 8 l dissolution medium |
| MediPrep 1622 for 16 l dissolution medium | |
| Functions | MediPrep 820: Vacuum degassing, heating, gravimetric filling |
| MediPrep 1622: Mixing, diluting, vacuum degassing, heating, gravimetric filling | |
| US pharmacopeia conformance | ✔ |
| Inlet for premixed media | MediPrep 820: 1 Inlet for media from external source |
| MediPrep 1622: 1 Inlet for media from external source, 2 inlets for concentrates | |
| Outlet for residual or waste medium | ✔ |
| Remote dosing hand | Optional |
| Control | Touch panel 7" |
| Common aqueous media at least 2 l | ✔ |
| Physiological media pH 1-12, at min. 2 l |
✔ |
| Time needed for media preparation of 8 l | ≤ 15 min (depending on degassing time) |
| Time needed for media preparation of 16 l | ≤ 24 min (depending on degassing time) |
| Mixing accuracy (only 1622) | ≤ 1 % with a ratio of concentrate to water 1:9 to 1:1 (m/m) |
| Handling of foaming media (SDS) | Max. 1 % solution at max. 6 l (MediPrep 820), Max. 1 % solution at max. 14 l |
| Dosing volume and accuracy | 250-1000 ml, max. 1 % |
| Weighing accuracy | ≤ 0.1 % at 2 kg |
| Heating temperature, accuracy |
Max. 50° C, ± 0.2° C |
| Degassing pressure, accuracy | ≤ 200 mbar, ± 10 mbar |
| Product memory | Max. 100 |
| User memory | Max. 50, password-protected access |
| Interfaces | USB-A for printer, RS-232 interface for firmware |
| Dimensions (height x width x depth) | 692 x 367 x 645 mm |
| Weight | 36 kg (MediPrep 820), 42 kg (MediPrep 1622) |
| Power supply, safety fuses | 115 or 230 50/60Hz, 2 x 16 A |
| Power consumption | Max. 2000 W |
