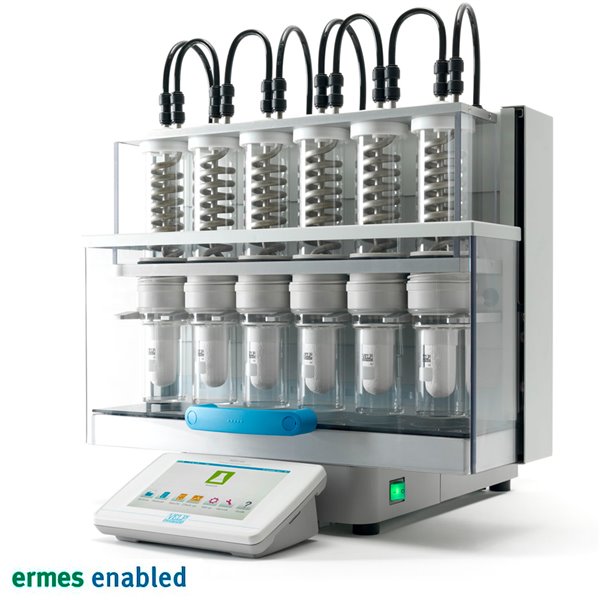

SER 158 Automatic Solvent Extractor Series
Fast and accurate solid-liquid extraction
The SER 158 series of automatic solvent extractors in 3 and 6 positions are the accurate and precise solution for quantitative and qualitative extractable matter determination according to the Randall method, analyzing up to5 times faster than traditional Soxhlet.
The solid-liquid extraction process removes the soluble components from solids using a liquid solvent in 5 steps. The SER 158 works in accordance with international standards such as AOAC, ISO, EPA, APHA, UNI.
Safe and powerful heating combined with advanced software and securityprocesses guaranteereproducible extraction processes.
The SER 158 is fully automated to maximize productivity and free operator time.
TECHNICAL DATA
| POSITIONS: | SER 158/33-positions SER 158/66-positions |
| MAX. CAPACITY: | SER 158/321 samples/day/unit SER 158/642 samples/day/unit |
| SCALABILITY: | SER 158/312-pos. (up to 4 units) SER 158/624-pos. (up to 4 units) |
| DISPLAY: | 7” color touch screen - extractable ControlPad |
| ACCEPTED SOLVENTS: | Capable of being used with the majority of solvents |
| SOLVENT RECOVERY: | > 90% |
| MEASUREMENT RANGE: | 0.1-100% |
| REPRODUCIBILITY (RSD): | ≤ 1% |
| AUTOMATION: | Immersion, Removing, Washing, Recovery, Cooling |
| LIGHTING: | LED lights show active positions |
| HEATING ELEMENT: | Glass ceramic – positions independent switch on/off |
| SAMPLE SIZE: | 0.5 to 15 g in 33x80 mm thimbles (generally 2-3 g) |
| SEALS: | Viton, Butyl, and Vaflon |
| CONDENSERS: | Titanium (VELP Patent Pending) |
| CONNECTIVITY: | Cloud via LAN |
| INTERFACES: | 3 x USB (balance, mouse, USB stick), Ethernet (Pc) |
| RESULT CALCULATION: | Automatic, Archived on ControlPad |
| WATER CONSUMPTION: | from 1.0 l/min |
| DIMENSIONS (WXHXD): | SER 158/3358x546x450 mm - 14x21,5x17,7 inch SER 158/6546x546x450 mm - 21,5x21,5x17,7 inch |
| DIMENSIONS WITH CONTROLPAD: | SER 158/3358x546x570 mm - 14x21,5x22,4 inch SER 158/6546x546x570 mm - 21,5x21,5x22,4 inch |
| WEIGHT (SER 158/CONTROLPAD): | SER 158/3Kg 29 / 1 - 64 / 2,2 lb SER 158/6Kg 36 / 1 - 80,3 / 2,2 lb |
| POWER SUPPLY: | SER 158/3115/230 – 50/60 V-Hz SER 158/6115/230 – 50/60 V-Hz |
| POWER CONSUMPTION: | SER 158/3630/850 W SER 158/6630/850 W |
