EP-1

Overview

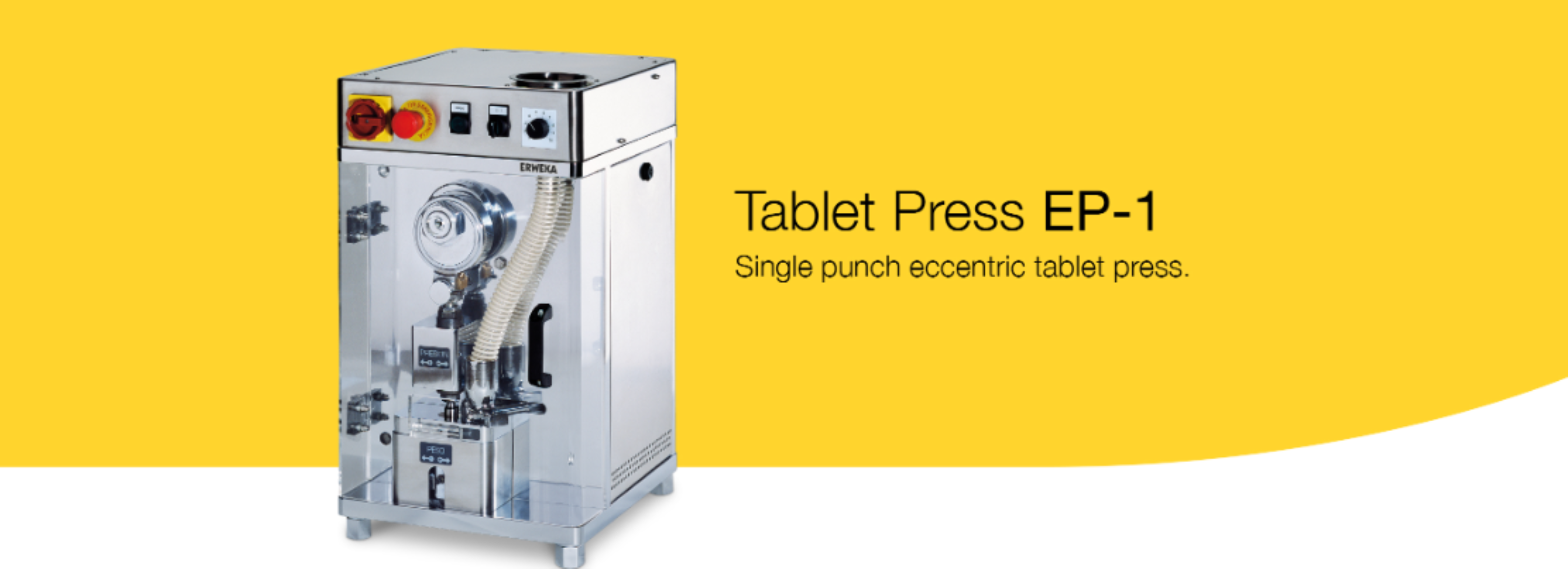

The EP-1 is the ideal desktop tablet press for R&D purposes. The single punch eccentric Tablet Press EP-1 can manufacture tablets and odd shaped products with a diameter of up to 20 mm. It operates automatically i.e. the die is filled with powder or granule, the material compressed and the tablet ejected continuously. The compression force of up to 3 tons and the filling depth of up to 17 mm are easy to adjust.

All components are either covered with hard chrome, or made of stainless steel AISI 304 or acrylic glass for the front door. Frame parts (plates) are made of 1.0332 StW22 and are bright chrome-plated. The throughput is max. 4.000 tablets per hour.

Options

• Data transfer option
• Data logging software
• Standard data export via RS232 interface
• EP-1 single punch tablet press with compression force

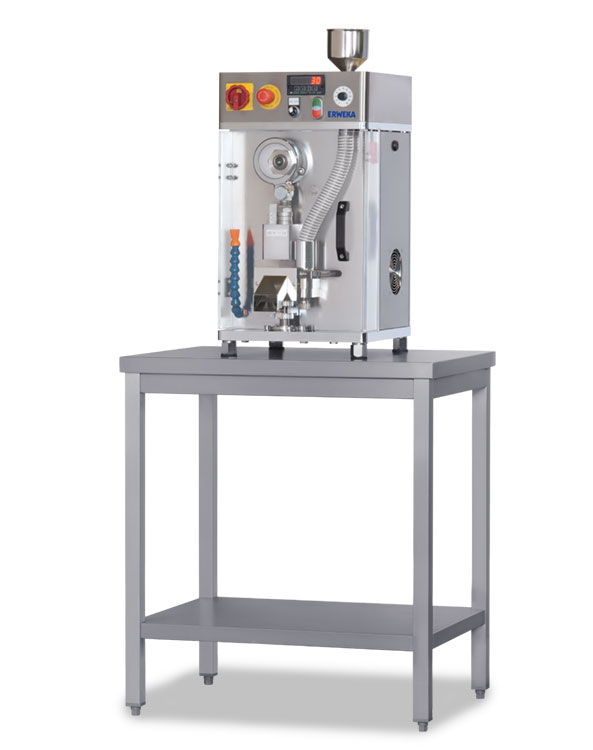

• Support table in stainless steel
• Single punch and die set, 4.0 mm to 20.0 mm diameter, type STR 1, for round tablets
• Single punch and die set, 4.0 mm to 20.0 mm diameter, type STS 1, for shaped tablets
• Transformer for EP-1 (from 230 V to 115 V)
• IQ/OQ documents EP-1 without compression force

Contact us for pricing
