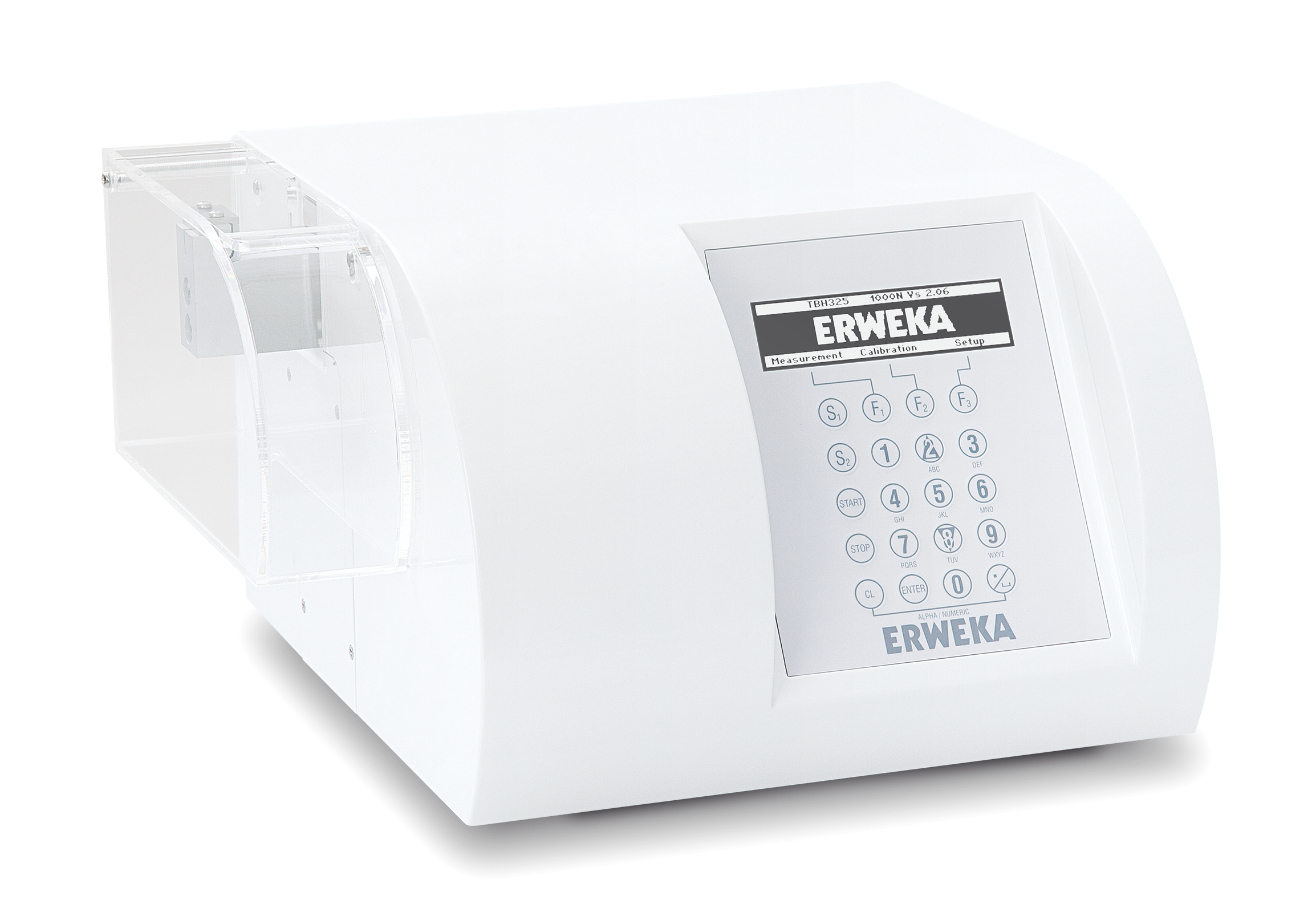

TBH 325 Tablet Hardness Tester with Memory for up to 50 Products
Easy calibration
Simple setup
Calibration of the hardness test station is completely menu driven and may be carried out by either weight stones or the electronic ERWEKA AutoCal 2.0 System. If performing by weight stones, the TBH 325 offers a two-point adjustment of which one point is fixed (0 kg) and the second one may be freely selected of the unit’s measurement range.
To assure accurate results of the complete measurement range, ERWEKA recommends setting the second calibration point in the middle of the unit's measurement range, i. e. at 30 kg. On completion of adjustment the accuracy/linearity of the measurement range may be calibrated and documented (by up to three points within the measurement range).
Multiple interfaces
Get connected
Via a SD memory card or USB memory stick the laid down product data can be either secured or easily transferred to any other TBH 325/425. The ERWEKA MC.NET software controls the TBH from a PC. In addition, the USB printer interface can be connected to receive a hard-copy documentation with data such as unit serial number, date/time of calibration, date/time of test run as well as individual results and statistics.
The Ethernet LAN interface allows connecting a computer with the optional ERWEKA MC.NET software. In combination with this option the TBH 325 series is 100 % 21 CFR 11 compliant and can be controlled via a PC.
The TBH 325 series is available for measurement of:
- Hardness - TBH 325
- Hardness and diameter TBH 325 D
- Hardness/diameter/thickness TBH 325 TD
- Hardness/diameter/thickness/weight TBH 325 WTD
