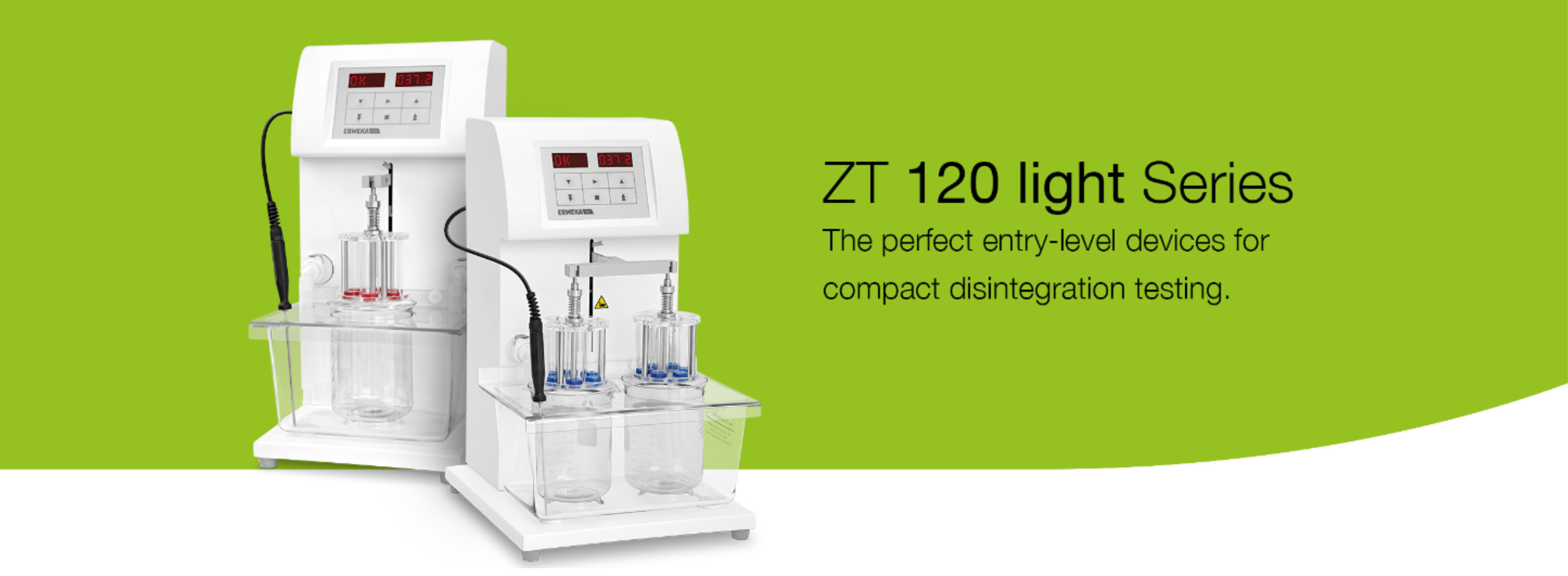

ZT 120 light Series - Compact disintegration testing

The ERWEKA ZT 120 light series is the perfect entry-level disintegration tester with one or two motor driven USP/EP/JP compliant test station. The compact unit of our light series is equipped with an integrated flow-through heater and a moulded one-piece PET water bath (no leaking / breaking, easy to clean) with cover.

The ZT 120 light series can be easily operated via a membrane keypad. Defined test run parameters such as run time and water bath temperature are entered with symbol keys and the actual values are then shown on large and bright LED displays. The run-time counter automatically starts as soon as the basket rack assembly is lowered into the test media.

Specifications:
1 or two test stations, driven by a single motor
30 ± 1 strokes/min.
55 ± 2 mm stroke height
Function keys and 2x LED display for entering nominal bath temperature and required run-time
Starts/stops to counting run-time automatically when basket rack is lowered
Integrated flow-through heating system (accuracy ± 0.2 °C)
Temperature range 30 - 50 °C
Run time up to 9 h, 59 min, 59 s ± 1 s
Manual lift-in and -out of the baskets
