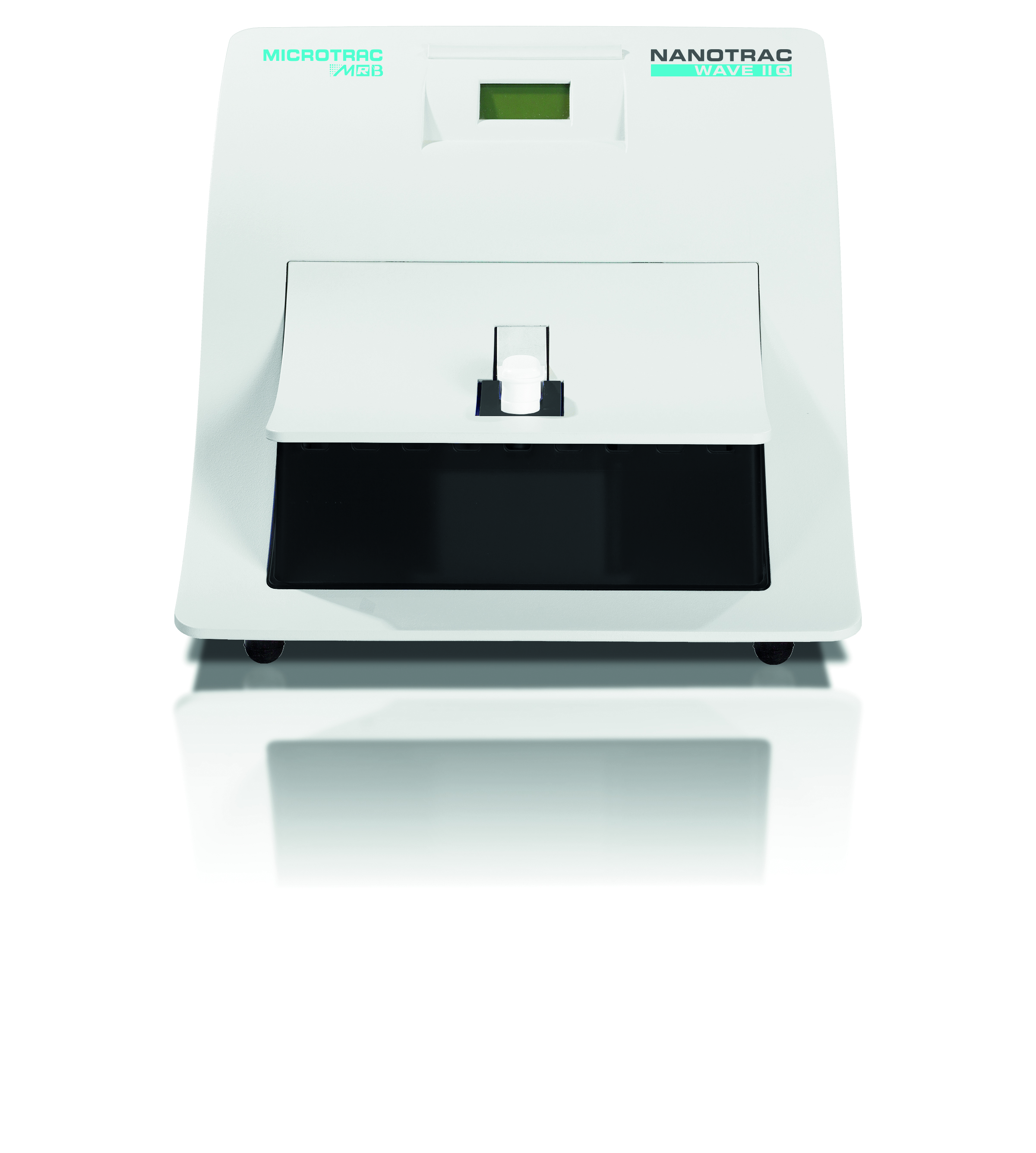

Nanotrac Wave II Q Nanoparticle Size Analyzer

Nanotrac Wave II Q Nanoparticle Size Analyzer

Microtrac | Particle Size Analysis

Using Reference Beating, an enhancement to traditional DLS, the Nanotrac Wave II Q delivers an amplified optical signal back to the photodetector, resulting in superior measurement accuracy for measuring size and molecular weight of nanoparticle suspensions.

Providing unparalleled characterization results, the Nanotrac Wave II takes full advantage of the amplified optical signal, probe technology fixed at the cuvette interface, and advanced algorithms. From ppm to near finished product, the Nanotrac Wave II Q determines fast, repeatable, and sensitive measurements of particles ranging from sub-nanometer to several microns.

Even with a cuvette, Reference Beating increases the optical signal anywhere from 100 to 1,000,000 times compared to traditional DLS. Users can accurately measure single and multi-modal distributions across a broad concentration range.

FEATURES

  • Measures particle size from 0.8 to 6,500 nanometers
  • Simultaneously measure size and concentration
  • Cuvette error detection alerts
  • No blank measurement or prior knowledge of size distribution required – simply load cuvette and measure
  • Widest concentration range on the market from ppm to 40% w/v
  • Peltier temperature control device
  • Compliant with FDA 21 CFR Part 11
  • Compatible with 5 cuvette volumes:
  • Macro volume
  • Glass
  • Semi micro volume
  • Micro volume
  • Stainless steel / Sapphire

PRODUCT ADVANTAGES

  • No “A priori” knowledge of particle size distribution needed – simply load your material and hit RUN
  • Easy SOP set-up and administration, ideal for managing users across multiple shifts
  • Cleanliness of cuvettes and sample cells displayed, including alarms and error messages
  • Available in several translated languages
  • Extensive database
  • Compliant with FDA 21 CFR Part 11
  • Statistical analysis
  • Manually select dynamic viscosity value of material – ensures accuracy and consistency (according to Stokes-Einstein)
  • No set zero required – the blank measurement is built into the software
  • User gets notifications about the passing or failing of specifications
  • Live or recalled database trending plots
  • User-defined data reports and calculations
  • Multiple data export options

Contact us for pricing
