Planetary Ball Mill PM 300
Retsch | Sample Preparation - Inorganic

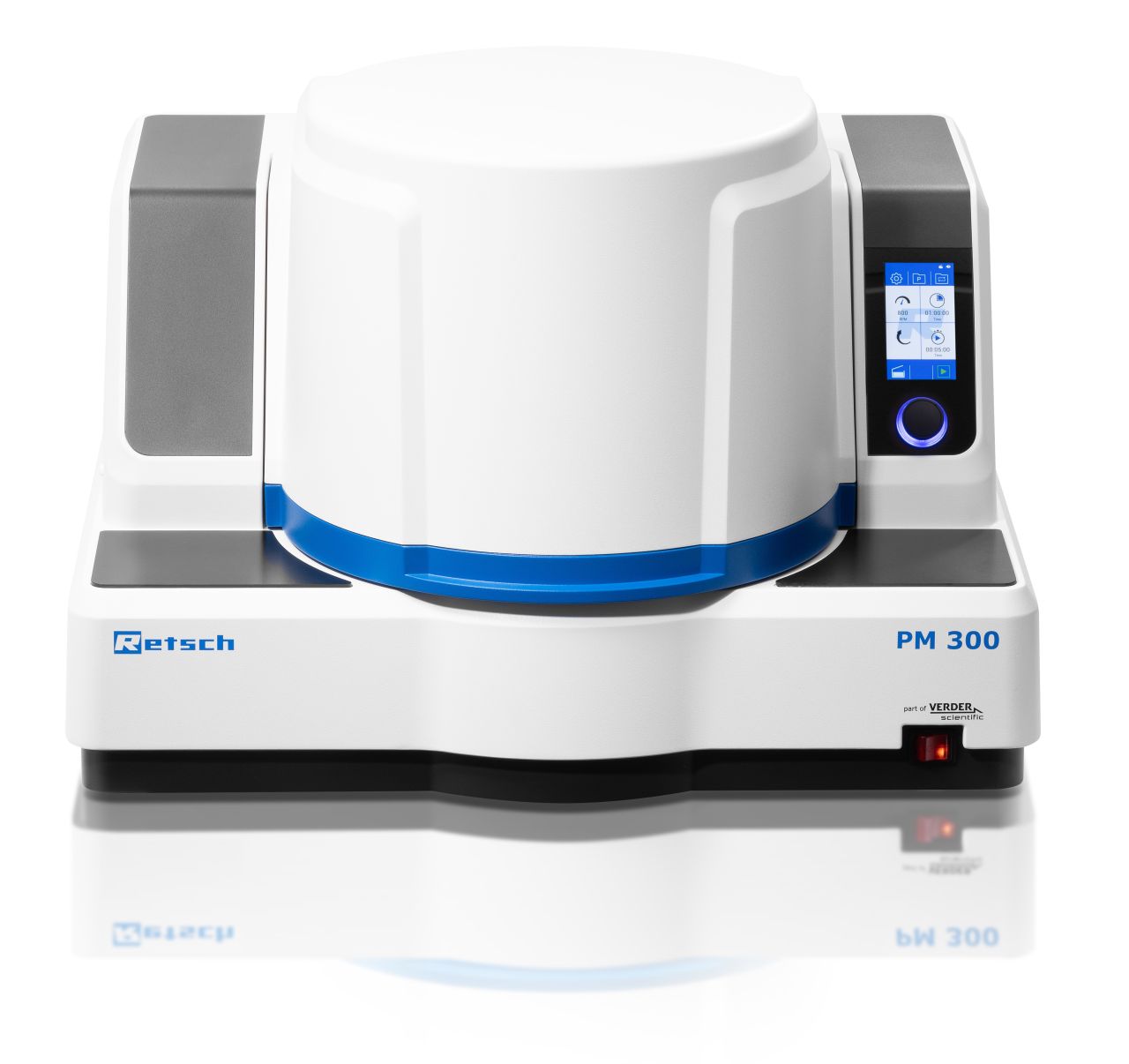

Introducing the new Retsch Planetary Ball Mill PM 300!
A robust and ergonomic benchtop model with two grinding stations for grinding jar volumes up to 500 ml. Ideally suited for virtually all industries where the quality control process places the highest demands on purity, speed, fineness and reproducibility.

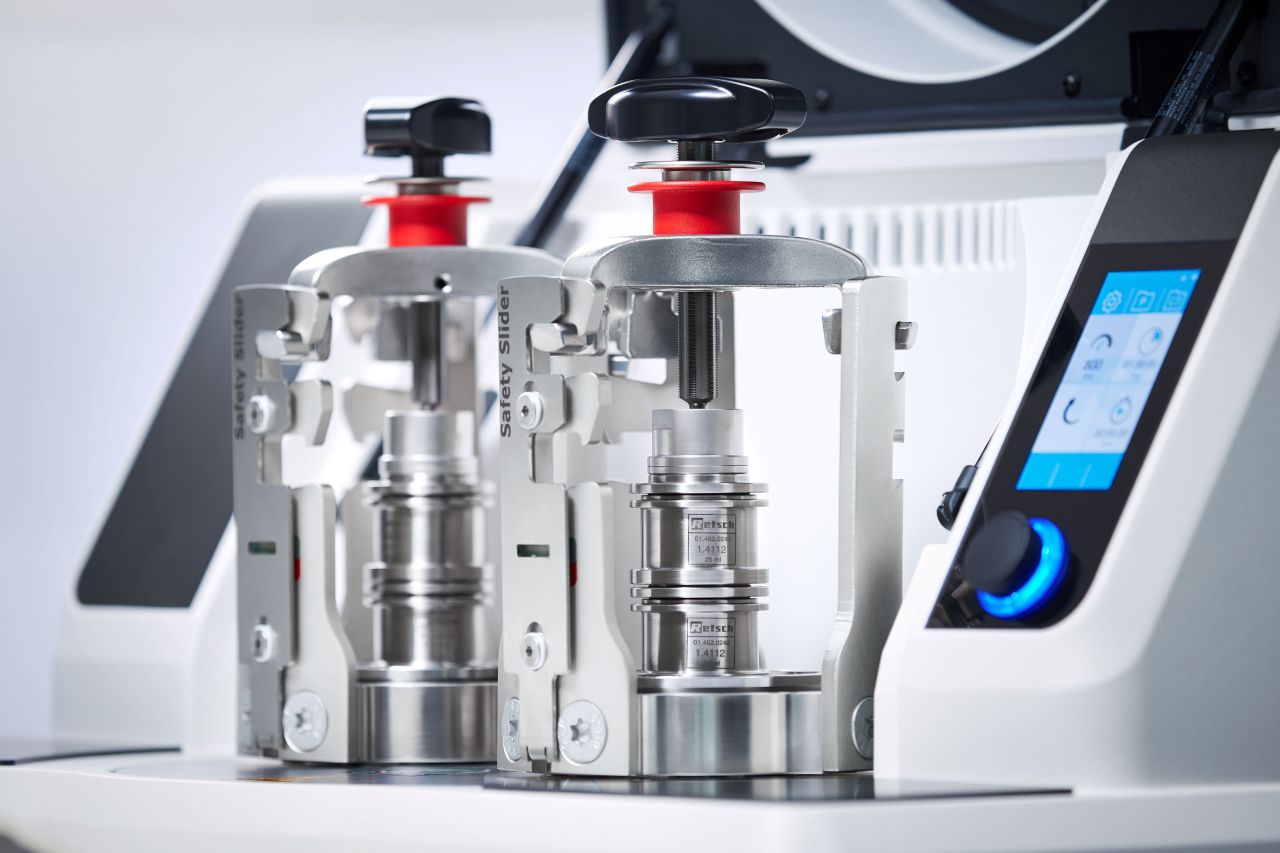

The PM 300 works with a speed ratio of 1:-2, but in contrast to other models, it reaches up to 64.4 x acceleration of gravity thanks to the maximum speed of 800 rpm and the large sun wheel. Together with the option to use four small, stackable grinding jars sized 12 to 80 ml for small scale operations, or two jars sized up to 500 ml for upscaling purposes, this planetary ball mill is highly suitable for research applications in mechanochemistry.
Wet grinding is used to obtain particle sizes below 5 µm, as small particles tend to get charged on their surfaces and agglomerate, which makes further grinding in dry mode difficult. By adding a liquid or dispersant the particles can be kept separated.
To produce very fine particles of 100 nm or less (nano-scale grinding) by wet grinding, friction rather than impact is required. This is achieved by using a large number of small grinding balls which have a large surface and many friction points. The ideal filling level of the jar should consist of 60 % small grinding balls.
Product Brochure - Download
